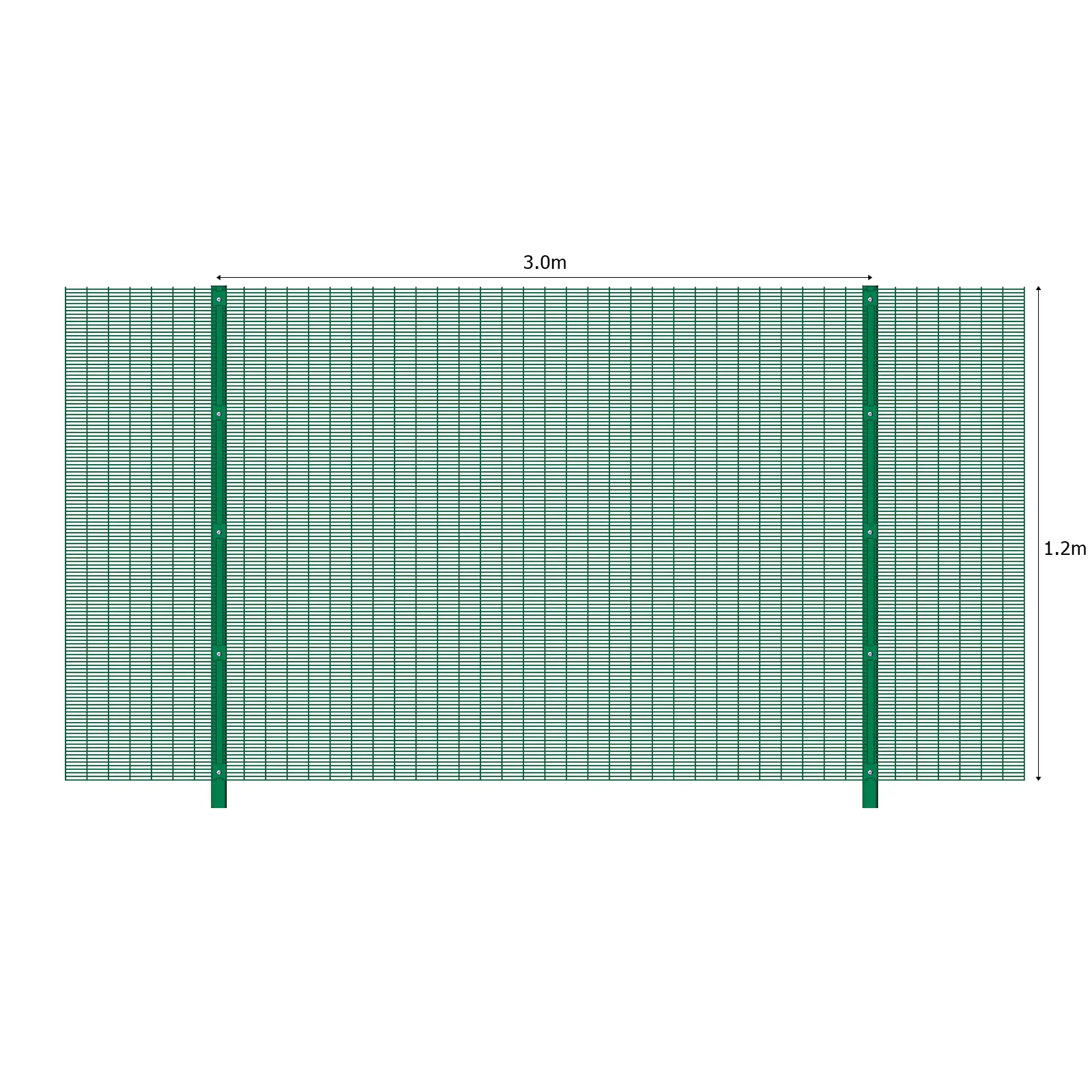

1.2m High 358 Prison Mesh features a 76.2mm x 12.7mm mesh pattern with 4mm horizontal wires at 76.2mm centers and 4mm vertical wires at 12.7mm centers. This high-security fencing, with flashed tops and posts spaced approximately 2515mm apart, offers exceptional resistance to cutting, climbing, and vandalism. Ideal for high-risk areas, it provides superior visibility and durability, making it a preferred choice for prisons, airports, and other high-security sites.
Description

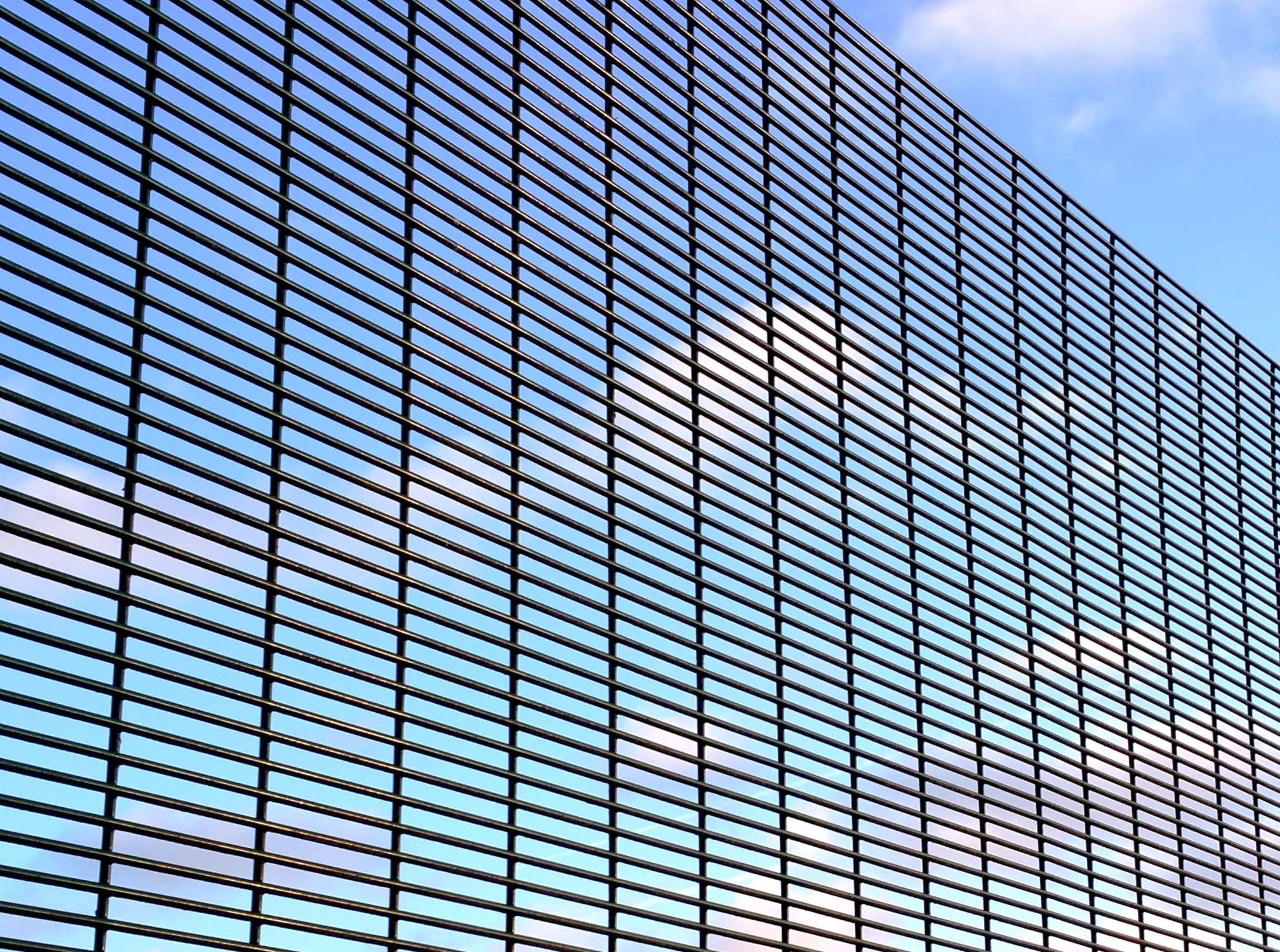

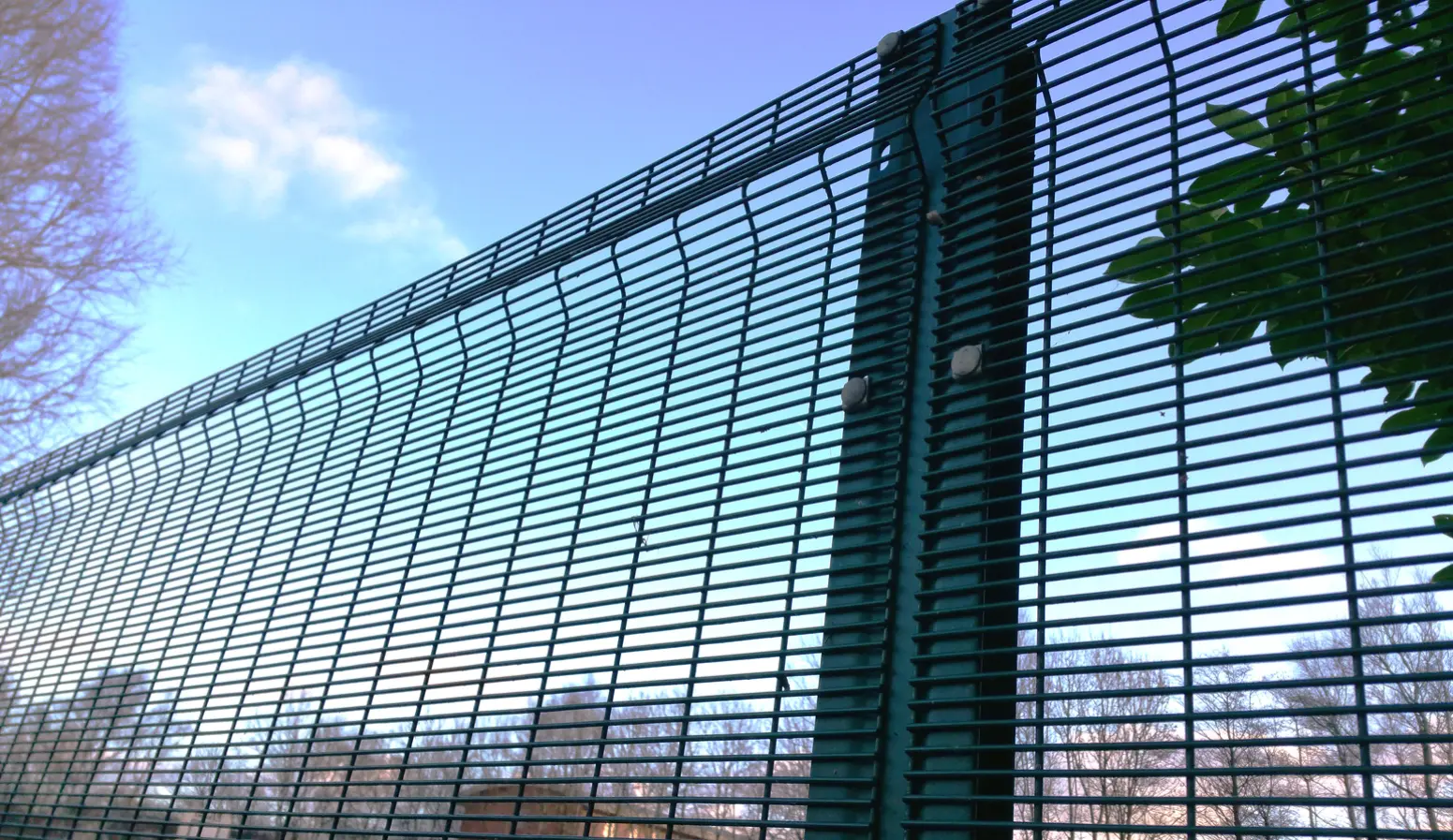

358 Prison Mesh is the ultimate choice in high-security fencing systems, also known as the wire-wall system. Featuring a 76.2mm x 12.7mm mesh pattern, this design incorporates 4mm horizontal wires spaced at 76.2mm centers and 4mm vertical wires spaced at 12.7mm centers, ensuring extreme resistance to cutting and tampering with conventional tools. The panels come with flashed tops and are designed to be installed with posts approximately 2515mm apart. Offering exceptional security and anti-corrosion protection, this mesh is ideal for areas requiring stringent security measures. Its finger and toe-proof pattern provides excellent resistance to climbing, making it highly effective in high-risk environments. The panel offers superb visibility through the fence while deterring vandalism. Extensively used by the Ministry of Defence, this system is designed to secure high-security sites effectively.

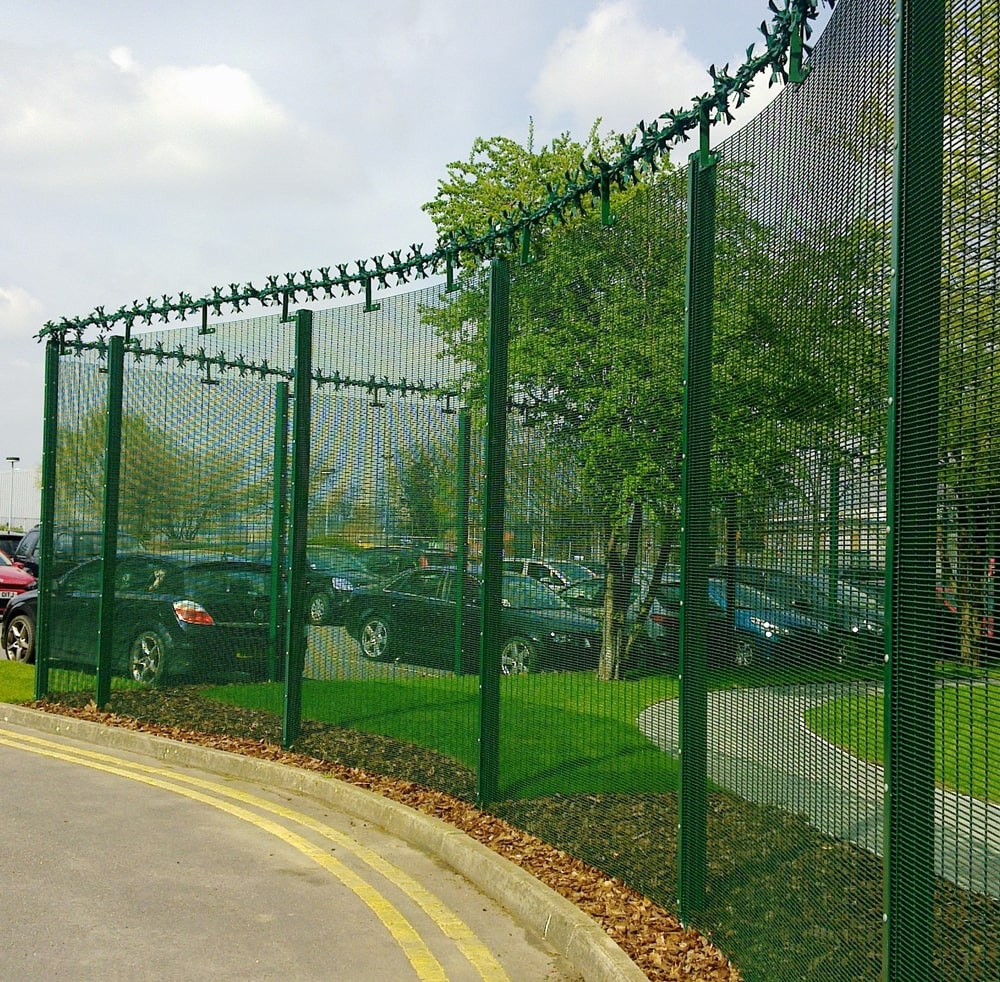

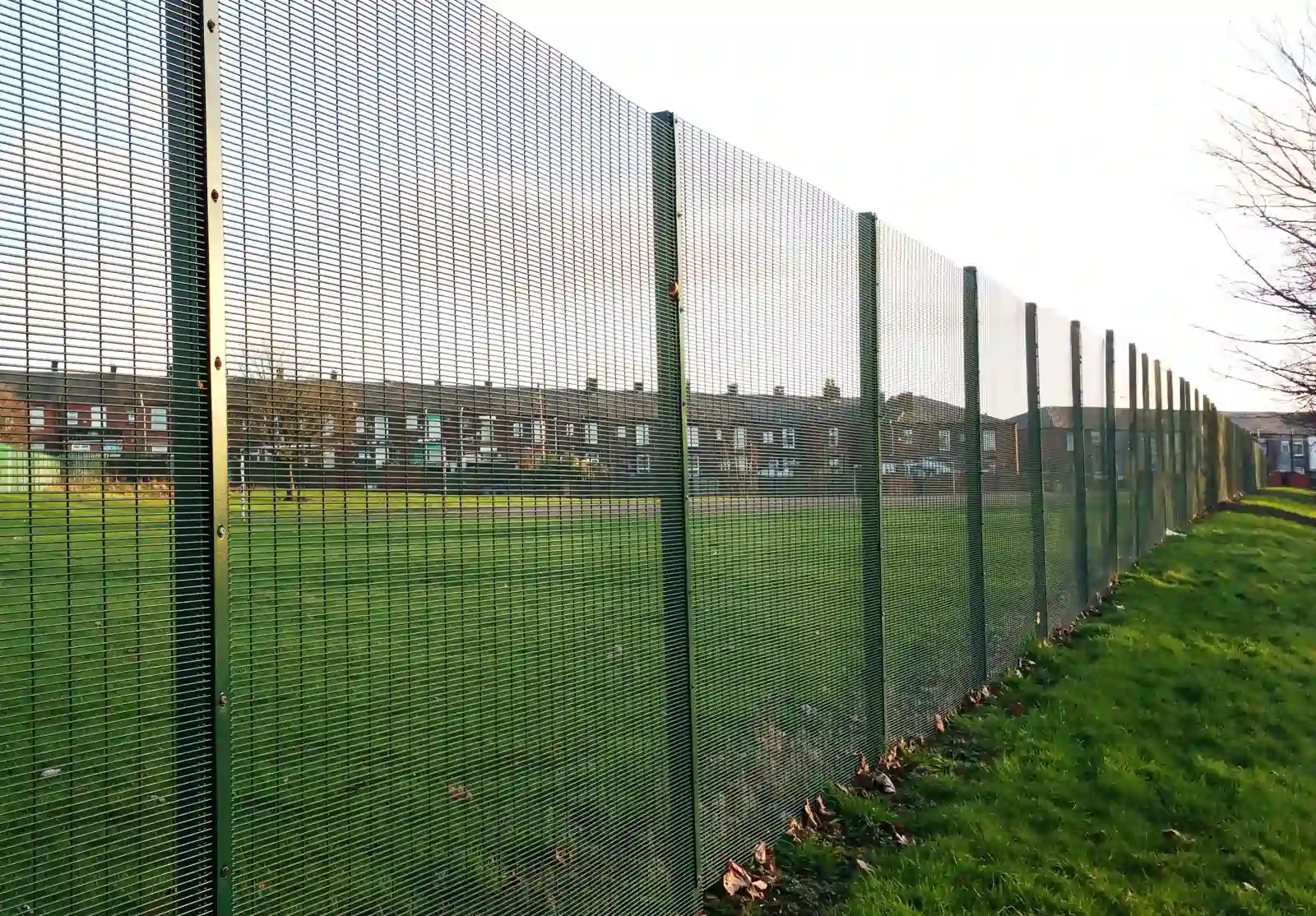

Applications
- Prisons
- Sport Stadiums
- Schoools and Hospitals
- Airports
- Commercial Sites
- Power Stations
- Industrial Estate
Content
- 1 x Panel
- 1 x Post
- 4 x Security Screws
- 4 x Mesh Clips OR
- 1 x Clamb Bar

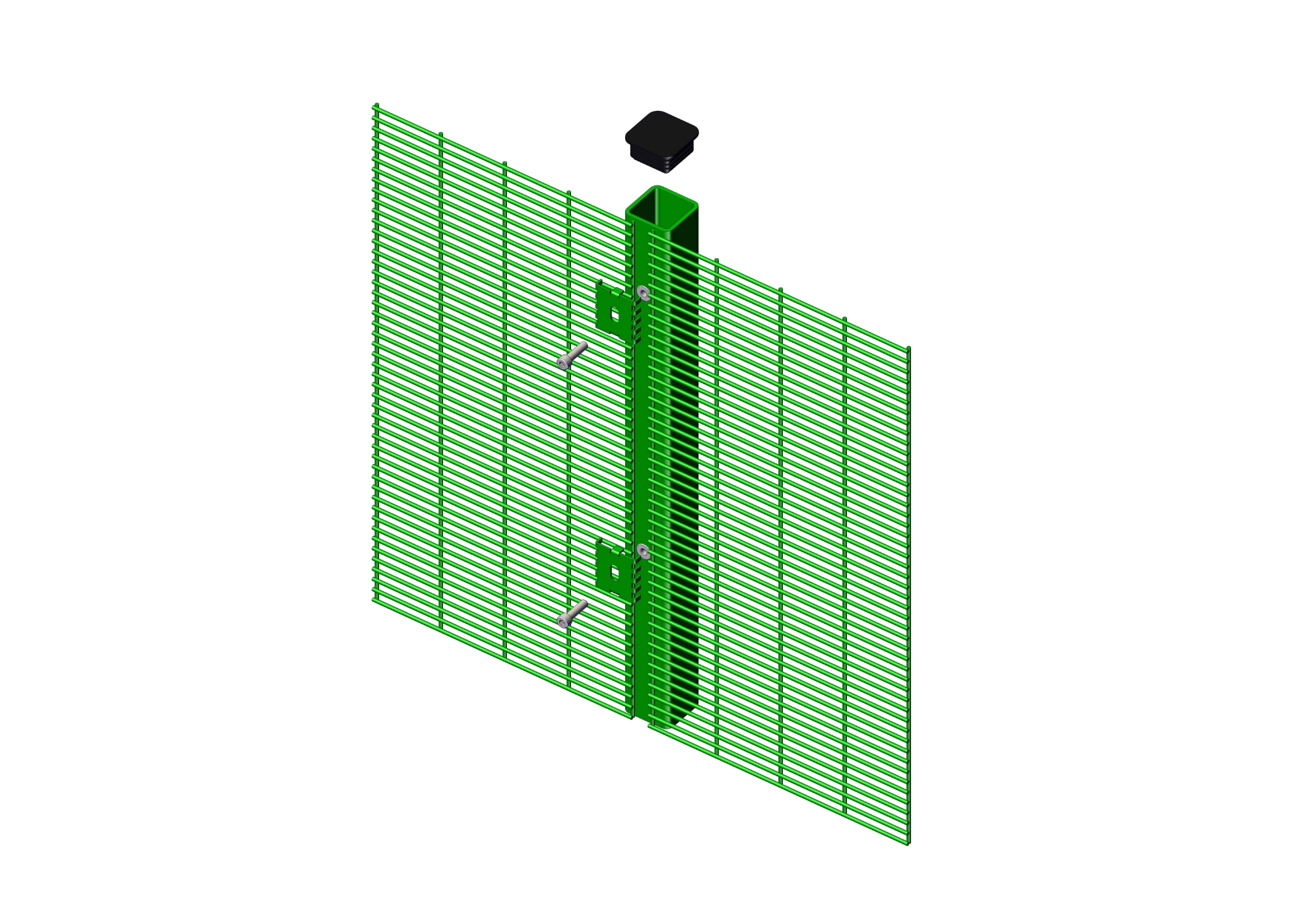

Post System

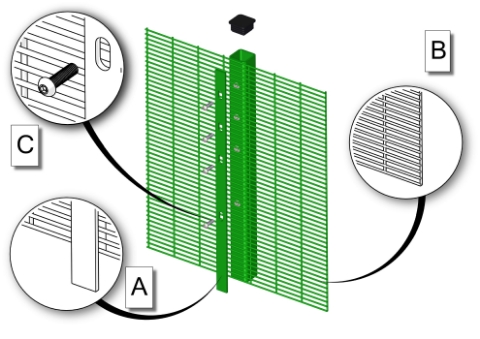

Fixings

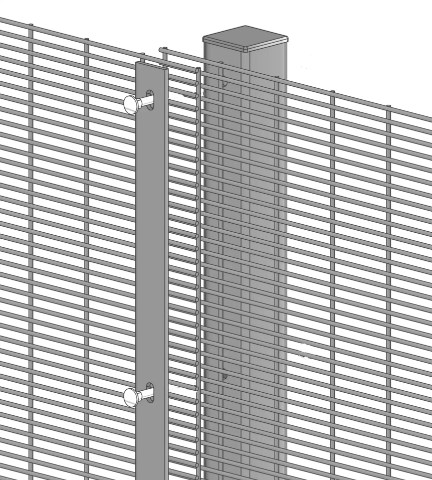

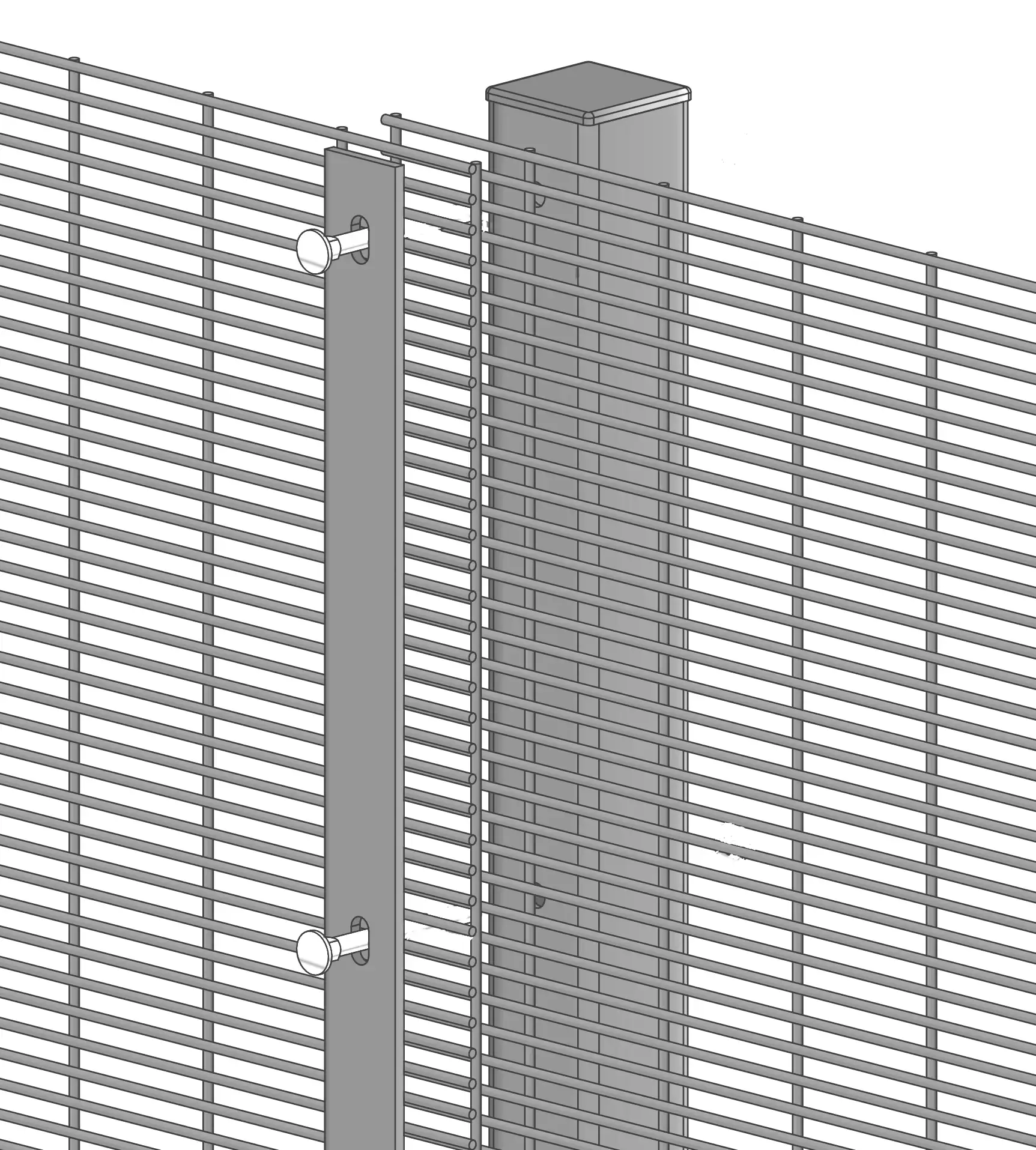

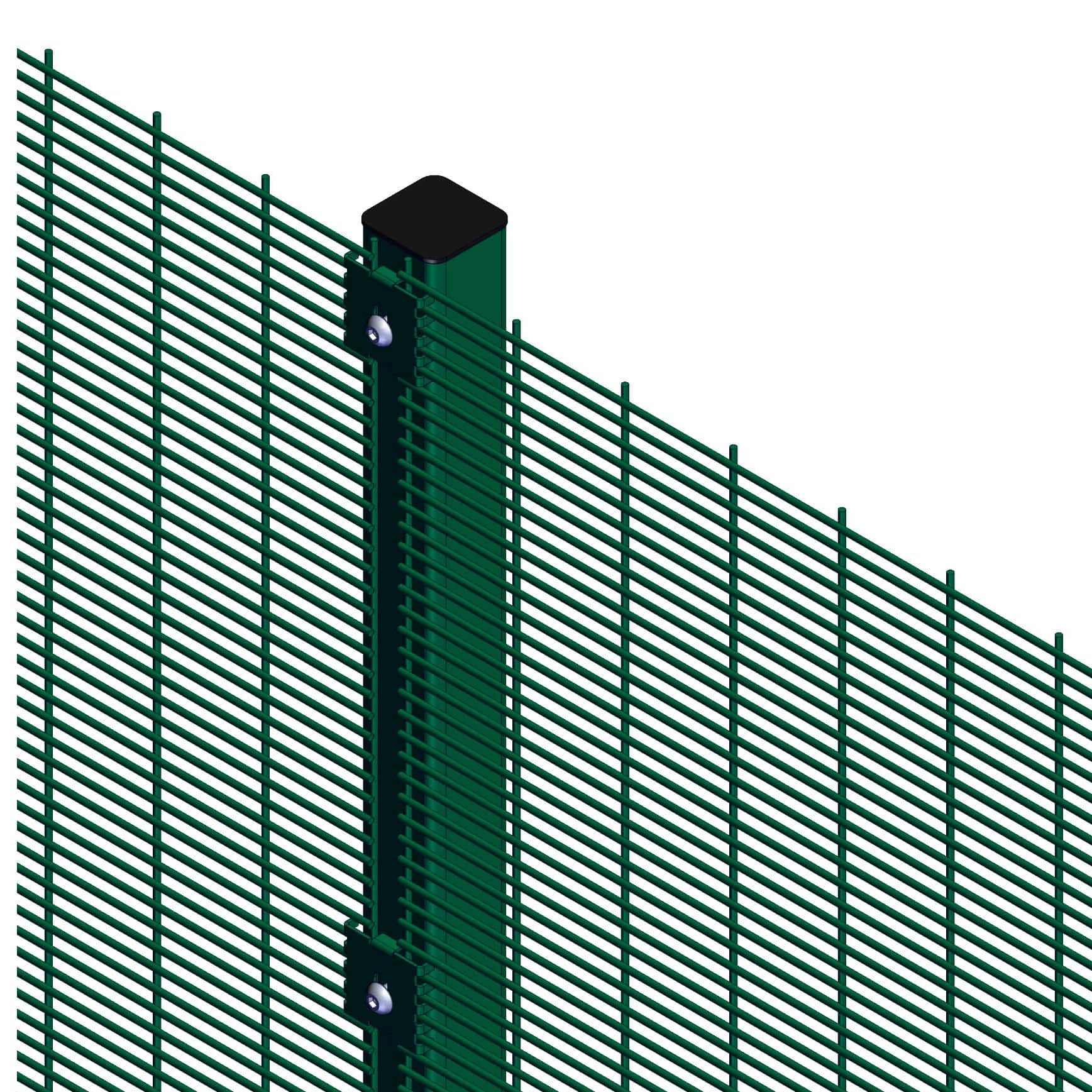

CLIP SYSTEM CLAMP BAR SYSTEM
- Panels are produced from Galvanised wire to BS EN 10244-2:2001 class.
- Panels are offered Zinc Phosphate pre-treatment and 100 microns Polyester powder coating on top of pre-galvanise wire (typically 80-100g/m² of Zinc prior to Weld) which gives long-lasting protection against the weather conditions.
- All the panels are suitable for multi lift installation with suitable post posts.
Note:
- Above specification may alter from those illustrated due to continues improvement in design and specification.
- All the pictures are for illustration purpose and not to scale
Specification

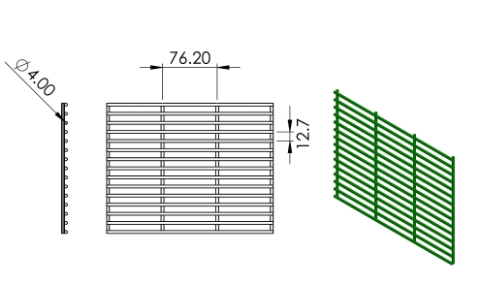

| Mesh Pattern | 76.2mm x 12.7mm each interaction |
| Horizontal Wires | 4mm wires at 76.2mm centers |
| Vertical Wires | 4mm wires at 12.7mm centers |
| Top | Panels are flashed at the top |
| Post Centre | 2515mm approx |
| Standard Finish | Green (RAL6005) & Black (RAL9005) |
| Other Colours | There is an option of wide range of other colours |

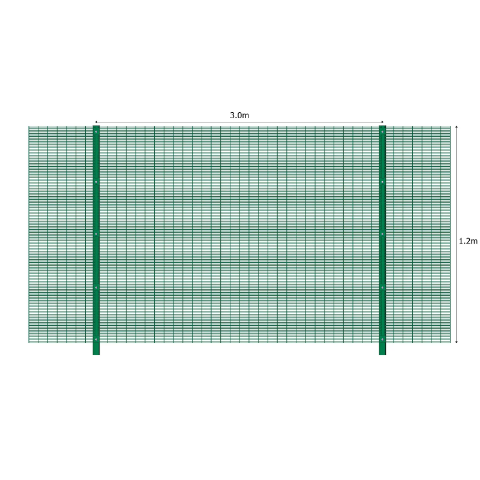

| Fence Height | Panel Size H x W (mm) | No. of Fixings
| Panel Weight (KG) | Post Dimension (mm) | Post Length (In Ground) |
| 1.2m | 1150 x 2510
| 4 | 24.38 | 60x60 | 1.85m |
| 1.8m | 1730 x 2510 | 5 | 37.10 | 60x60 | 2.45m |
| 2.0m | 1930 x 2510 | 5 | 41.10 | 60x60 | 2.65m |
| 2.4m | 2330 x 2510 | 6 | 50.10 | 60x60 | 3.10m |
| 3.0m | 3000 x 2510 | 8 | 91.15 | 60x60 | 3.70m |
Panel Types
358 Galfan - 358 Due - 358 Superior - 358 Profiled
