Description
Introducing our innovative Fold Top Fencing System, designed with unique and user-friendly features to meet your security needs. Ideal for areas where safety is a top priority, this system incorporates a fold top design that ensures maximum security while offering peace of mind.
Featuring triangular beams at the top and bottom of the panel, our Fold Top Fencing System provides exceptional rigidity, making it a reliable choice for a wide range of applications. Enjoy excellent through vision, allowing clear visibility while maintaining security.
With its sleek and aesthetic appearance, this fencing system not only enhances the security of your property but also adds to its visual appeal. Invest in our Fold Top Fencing System for a combination of safety, durability, and aesthetics.
Applications
- Residential Areas
- Schools/Colleges
- Play Areas
- Nurseries
- Motorways
Post System




Specification

- Panels are produced from Galvanised wire to BS EN 10244-2:2001 class D.
- Panels are offered Zinc Phosphate pre-treatment and 100 microns Polyester powder coating on top of pre-galvanise wire (typically 80-100g/m² of Zinc prior to Weld) which gives long-lasting protection against the weather conditions.
- Standard stock colours: Green (RAL 6005) and Black (9005)
- There is an option of a wide range of RAL colours.
Note:
- Above specification may alter from those illustrated due to continues improvement in design and specification.
- All the pictures are for illustration purpose and not to scale
Specification

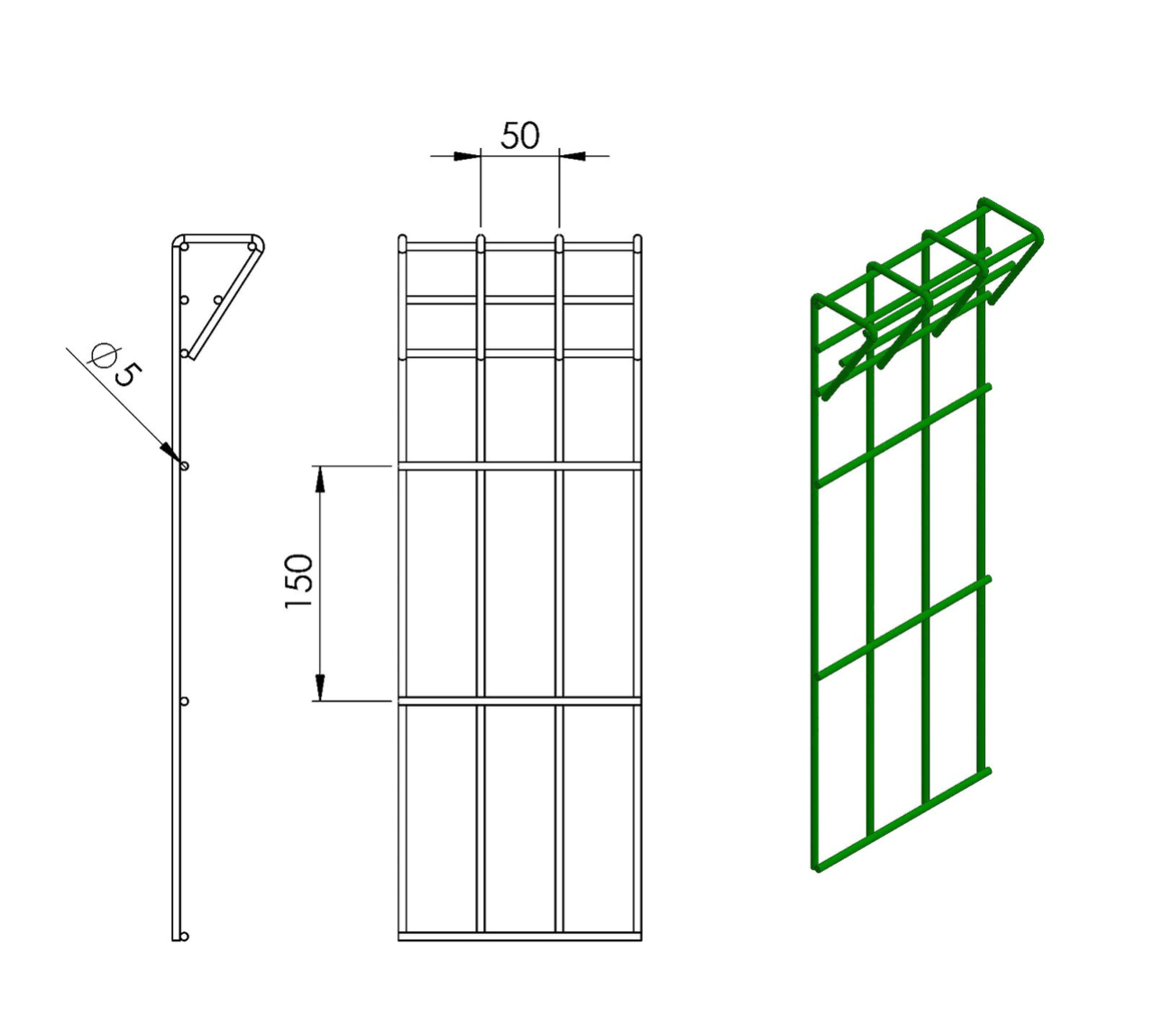

| Mesh Pattern | 150mm x 50mm each intersection |
| Horizontal Wires | 5mm wires at 50mm centres |
| Vertical Wires | 5mm wires at 150mm centres |
| Top | Triangle Fold |

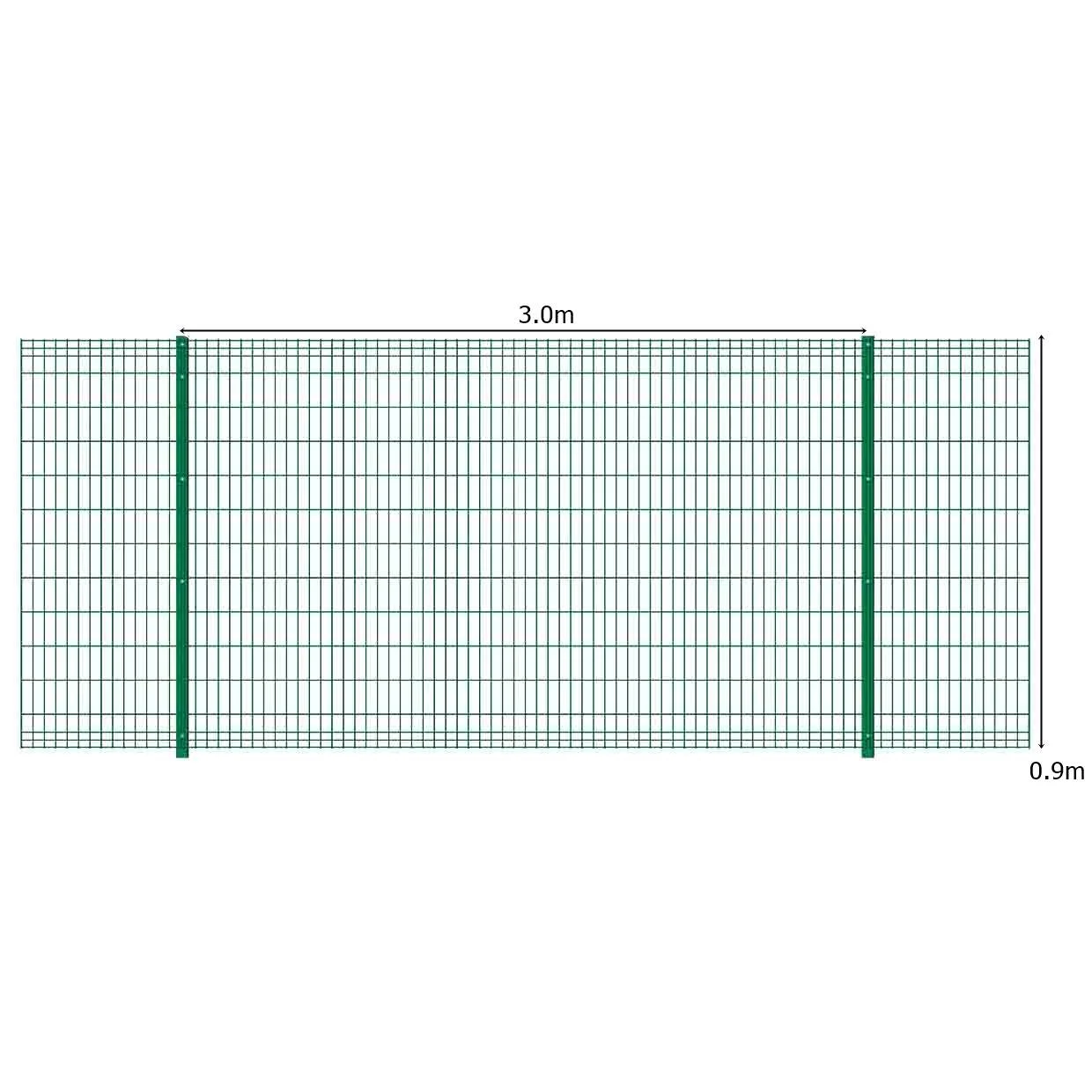

| Post Centre | 3.005m approx |
| Fence Height | Panel Size H x W (mm) | No. Of Fixings | Panel Weight (KG) | Post Dimension (mm) | Post Length (In Ground) |
| 0.9m | 900 x 3005 | 4 | 14.8 | 60x60 | 1.5m |
| 1.2m | 1200 x 3005 | 4 | 17.8 | 60x60 | 1.85m |
| 1.5m | 1500 x 3005 | 4 | 20.8 | 60x60 | 2.05m |
| 1.8m | 1800 x 3005 | 5 | 23.9 | 60x60 | 2.45m |
